Payment Orchestrator

This feature allows you to select a payment method from a list of eligible payment methods, using an index associated with the priority configured for the desired payment method.

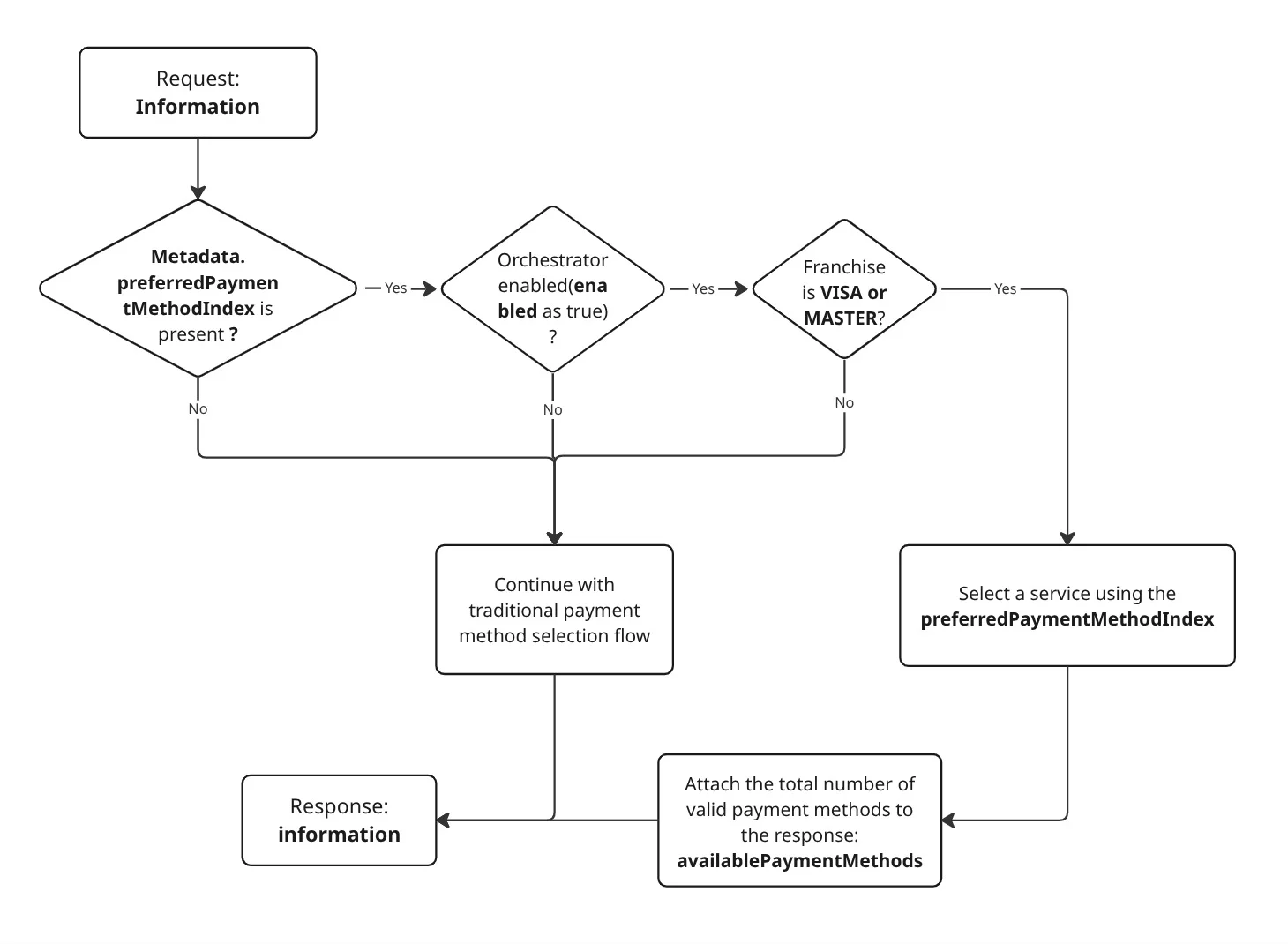

Payment method selection flow by index

Requirements to Enable the Feature

To enable the feature, several requirements must be met.

Orchestrator configuration enabled

The site must have the Orchestrator integration associated and active.

Valid index present in the request

In the request, whether from the information or process endpoint, the preferredPaymentMethodIndex field must be present within the metadata property.

Franchise

This feature only supports transactions with Visa and Mastercard franchise cards.

Payment methods availability

More than one eligible payment method must exist.

Processes that do not support payment method selection by index.

• Dispersion, both airline and merchant.
• Manual provider selection.
• Forwarding.

How is the payment method selected by index?

Currently, the first payment method is selected from a series of eligible payment methods for processing using the entered card.

With the integration of this feature, it is possible to select the desired payment method from the list of available payment methods, using an index provided in the request.

Payment method selection by index in the information request

When making a request to the information endpoint, the preferredPaymentMethodIndex field must be present in the metadata property.

Example, request

// ...
"metadata": {
    "preferredPaymentMethodIndex": 2
}
// ...

If the aforementioned conditions are met, a list of eligible payment methods is obtained. This is sorted in ascending order payment method priority.

With the indexed list, the payment method is selected using the index and the total number of payment methods is taken.

Once the selection is made, the availablePaymentMethods property is added to the information response, which indicates the total number of payment methods available to process a transaction with the entered card.

Response Example

// ...
    "availablePaymentMethods": 5
// ...

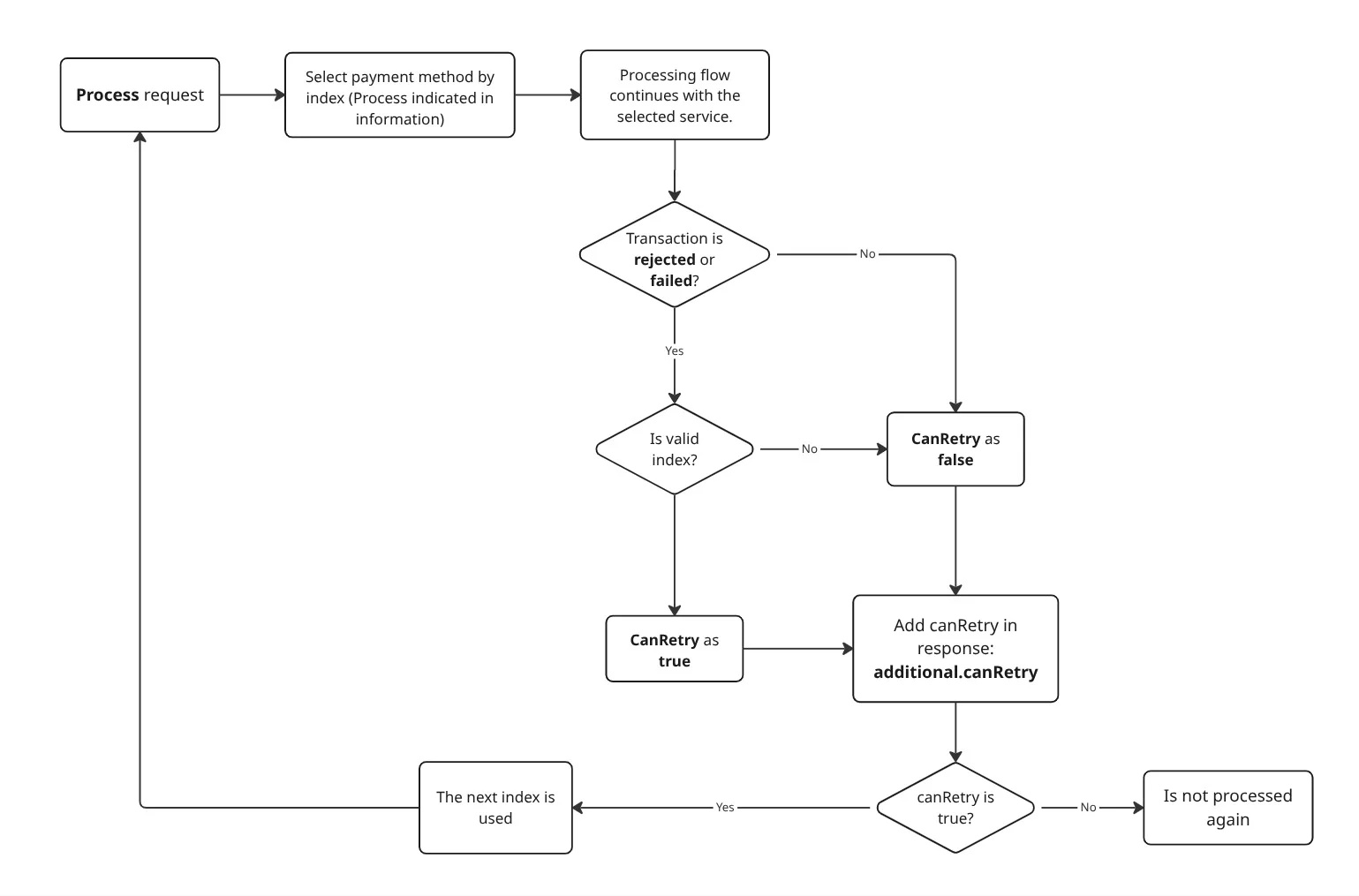

Retry Availability Flow

When making a request to the process endpoint, it must contain the preferredPaymentMethodIndex field in the metadata property.

The same payment method selection process as when requesting information is performed.

If a processed transaction is rejected or failed, and if the orchestrator integration on the site is active and the aforementioned requirements for index selection are met, the transaction is validated as eligible for reprocessing with an alternative payment method.

To indicate whether the transaction is eligible, the canRetry field is appended to the process response in the additional property.

A transaction may be eligible if it meets both the requirements validated during the selection process and the following:

Response Code

The response code must be within the list of codes that allow reprocessing.

Index

The index preferredPaymentMethodIndex in the request must be less than the total number of eligible payment methods to be processed.

In scenarios where the rejection code is in the list of eligible codes and the index is less than the total number of payment methods, canRetry will be true, otherwise, it will be false.

Response Example

    // ...
    "additional": {
        // ...
        "canRetry": true
    }
    // ...

For more information about examples and properties, see the api section.

FAQs
